Lab Fume Hood

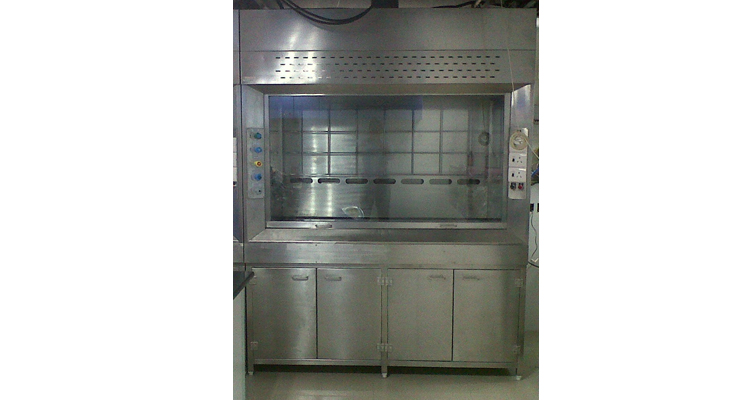

This fume hood is specially designed to withstand a highly acidic and oxidative environment. Perchloric Acid Fume hood and their exhaust system are designed to allow safe use of this chemical. All the exposed parts of the interior is seamless welded coved cornered and made up of 316 stainless steel. The work surface is the integral welded part of the shell be water tight and furnished with a raised edge to contain spills and wash down water .

A full width drain through is located below the baffel. An Exhaust collar that extends 12 mm inside the hood chamber and is seem welded to the inside top surface of the chember. Ducting for this fume hood do not integrate in to a room exhaust sysytem also the duct will be of shorter length.Drain outlet is designed to handle minimum of 56 Litres per minute. Our designed is based on Industy Demands , the Highest Quality Material and Latest Technology.We can also make Fumehoods as per your suitable requirements.

  • PP powder coating finish.
  • Advance aerodynamic design.
  • Efficient lovers and bypasses.
  • High quality toughen glass sash.
  • High load carring worktop surface.
  • SS 304 Seamless construction.
  • Excelent smooth sash movement.
  • Vapour proof flurocent light.
  • Color Shade.
  • Aerodynamic / FRP airfoil with smooth fiinsh
  • Preseat baffel provides unifirm face velocity

Material of construction (MOC)

  • CRCA Sheet (Cold rolled close Annealed)
  • GI (Galvanized Iron Sheet)
  • SS304/316 (Stainless Steel)
  • Wood (Marine Ply with laminates)
  • PP (Polyproplene)

Standard Size

  • 3 Feet (L 900mm X D 1000mm X H 2550mm)
  • 4 Feet (L 1200mm X D 1000mm X H 2550mm)
  • 5 Feet (L 1500mm X D 1000mm X H 2550mm)
  • 6 Feet (L 1800mm X D 1000mm X H 2550mm)
  • 7 Feet (L 2100mm X D 1000mm X H 2550mm)
  • 8 Feet (L 2400mm X D 1000mm X H 2550mm)

Work Top

  • Standard Black Granite
  • Telephone Black Granite
  • Back Painted Glass
  • Stainless Steel 304 (SS304)
  • Stainless Steel 316 (SS316)
  • Ceramic Top
  • TRESPA-TOP LAB (Imported)

Inner Lining

  • Polyproplene (PP)
  • Fiber Rainforced Plastic (FRE)
  • Phenolic Resine (Laminates)
  • SS304
  • SS316
  • TRESPA-VERTICAL (Imported)

Base Storage Cabinet

  • Apparatus Storage Cabinet
  • Chemical/Solvent Storage Cabinet
  • Combination Storage Cabinet

Sash Arrangment

  • Vertical Rising
  • Horizontal Sliding
  • Combination of Verical and Horizontal Sliding

Utility Valves

Electrical Services

  • 6/16 amp Socket and 16 amp switch
  • 20/32 amp Industrial Socket with MCB 20/32 amp
  • 20/32 amp BCH Socket with MCB 20/32 amp
  • Flame Proof Switch and Sockets


  • Pure apoxy latics
  • MS rod latics
  • SS rod latics

Cup sink


  • Polyproplene (PP)
  • Fiber Rainforced Plastic (FRE)
  • High Dencity Polyethelene (HDPE)
  • PVC

Blowers / Scrubbers

  • Polyproplene (PP)
  • Fiber Rainforced Plastic (FRE)
  • Molded Blower

Airflow Monitor with Alarm

Temperature Indicator

Fire Extinguisher

Color Shade

  • Lista Blue And White
  • Gray And White
  • Green and White
  • Usha Beige and White
  • Orange and White
  • Brown & White
  • VIP Blue & White
  • Blue & Gray
  • Complete White
