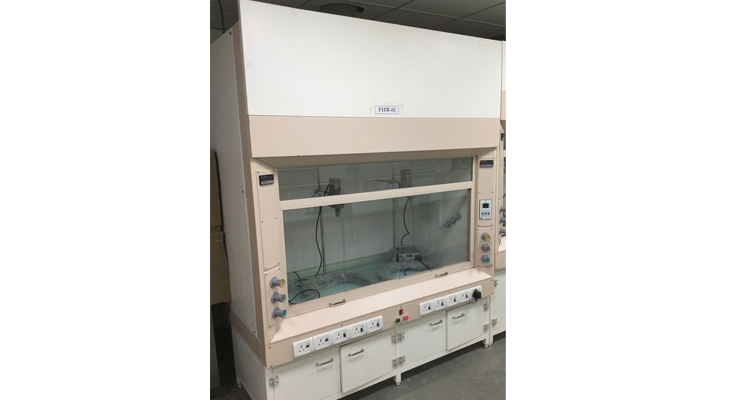

LBFH is also known as Distilation Fume Hood. LBFH is mounted on a pedestal that elivate the work surface to a height between 12 to 8 inches above the floor. LBFH has the same componants as BTH with the exceptions that the design provides you a large interior working height.
LBFH is designed to use With tall Apparatus. LBFH is offenly used in Biotech,chemical,pharmaceuticals,oil and Paint Industries, R&D labs, Bulk drug manufacturing plant & Pilot application plant. Our designed is based on Industy Demands , the Highest Quality Material and Latest Technology. We can also make Fumehoods as per your suitable requirements.
- Advance Aerodynamic design.
- PP Powder Coating Finish for better resistance to corosion.
- Excellent smooth sash movement.
- Vapour proof flurocent light.
- Removable / Preset baffel provides uniform face velocity.
- Removable access panel for maintainance.
- FRP airfoil for better resistance to corosion(Optional).
- Damper with Manual Adjustment Regulator.
- Tall Interior Working Height.
- Latics Assembly to hold the appratus.
Material of construction (MOC)
- CRCA Sheet (Cold rolled close Annealed)
- GI (Galvanized Iron Sheet)
- SS304/316 (Stainless Steel)
- Wood (Marine Ply with laminates)
- PP (Polyproplene)
Standard Size
- 3 Feet (L 900mm X D 1000mm X H 2550mm)
- 4 Feet (L 1200mm X D 1000mm X H 2550mm)
- 5 Feet (L 1500mm X D 1000mm X H 2550mm)
- 6 Feet (L 1800mm X D 1000mm X H 2550mm)
- 7 Feet (L 2100mm X D 1000mm X H 2550mm)
- 8 Feet (L 2400mm X D 1000mm X H 2550mm)
Work Top
- Standard Black Granite
- Telephone Black Granite
- Back Painted Glass
- Stainless Steel 304 (SS304)
- Stainless Steel 316 (SS316)
- Ceramic Top
- TRESPA-TOP LAB (Imported)
Inner Lining
- Polyproplene (PP)
- Fiber Rainforced Plastic (FRE)
- Phenolic Resine (Laminates)
- SS304
- SS316
- TRESPA-VERTICAL (Imported)
Base Storage Cabinet
- Apparatus Storage Cabinet
- Chemical/Solvent Storage Cabinet
- Combination Storage Cabinet
Sash Arrangment
- Vertical Rising
- Horizontal Sliding
- Combination of Verical and Horizontal Sliding
Utility Valves
Electrical Services
- 6/16 amp Socket and 16 amp switch
- 20/32 amp Industrial Socket with MCB 20/32 amp
- 20/32 amp BCH Socket with MCB 20/32 amp
- Flame Proof Switch and Sockets
Latics
- Pure apoxy latics
- MS rod latics
- SS rod latics
Cup sink
Ducting
- Polyproplene (PP)
- Fiber Rainforced Plastic (FRE)
- High Dencity Polyethelene (HDPE)
- PVC
Blowers / Scrubbers
- Polyproplene (PP)
- Fiber Rainforced Plastic (FRE)
- Molded Blower
Airflow Monitor with Alarm
Temperature Indicator
Fire Extinguisher
Color Shade
- Lista Blue And White
- Gray And White
- Green and White
- Usha Beige and White
- Orange and White
- Brown & White
- VIP Blue & White
- Blue & Gray
- Complete White
